CNC Bridge Mills – Vision Wide & Kitamura

Vision Wide SF Series

Vision Wide SF Series

Roller Way
X travels 83″ to 161″
Y Travels 48″ to 78″
Z Travel 31.5″ to 40″

4,500, 6,000, 10,000  & 18,000 RPM Available

Learn More

Vision Wide VB Series

Vision Wide VB Series

Box Ways
X travels 78″ to 157″
Y Travels 63″ to 78″
Z Travel 31.5″ to 40″

4,000, 6,000, 8,000, & 10,000 RPM Available

Learn More

Vision Wide NF Series

Vision Wide NF Series

Roller Way
X Travel 86.6″ to 401″
Y Travel 90.5″ to 130″
Z Travel 36″, 40″ 48″ & 55″ Available

4,500, 6,000, &  10,000  RPM Option

50HP Option Available

Learn More

Vision Wide VF Series

Vision Wide VF Series

Box Ways
X Travel 126.6″ to 196″
Y Travel 90.5″ to 102″
Z Travel 36″, 40″ Available

4,500, 6,000, &  10,000  RPM Option

50HP Option Available

Learn More

Kitamura Bridge – Mold/Die – 40 Taper

Bridgecenter 6G

Box Ways
60″ x 43″ x 28″  Travels
15,000 RPM (CT-40)
20,000 RPM Gear Driven Spindle Available
Perfect for Mold/Die Applications or Very Accurate Parts

Learn More

BM Series – Moving Beam

Vision Wide BM Series

Roller Ways
X Travel 165″ to 401″
Y Travel 118″ to 165″
Z Travel 39″, 48″ & 57″ Available
W Travel 39″, 48″, 51″, 57″ & 59″ Available

Learn More

Kitamura Bridge – Mold/Die

Kitamura Bridgecenter

Box Ways
X  Travels 80″ to 100″
Y Travels 43″ to 63″
Z Travels 28″ to 31.5″
CT-40 or CT-50
20,000 RPM Gear Driven Spindle Available
6,000 or 8,000 RPM CT-50

Learn More

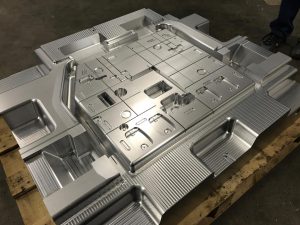

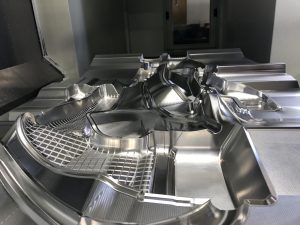

Vision Wide and Kitamura have several sizes of CNC Bridge Mills or Double Column Mills for either high speed die/mold work, plate work, prototype molds, aerospace, fixtures, gages, tooling, and more.
