Pallet Type Vertical Machining Centers

Kitamura and Ares Seiki offer pallet type Vertical Machining Centers.
                 Kitamura – 3XG Sparkchanger

M-3XGSP-005_full size

Specifications
Table Size: 16.1” x 34.0” (410 x 864mm)
Travel (X, Y, Z): 30” x 18” x 18.1”
(760 x 455 x 460mm)
Spindle Taper: NST No. 40
Spindle Speed: 40~15,000rpm
Tool Storage Capacity: 30Pcs.
Tool Change Time (T-T/C-C): 2.2 Sec. /4.4 Sec.
Rapid Feed (X, Y, Z): 1,969ipm (50m/min) X/Y x 1,417ipm (36m/min) Z
Power Requirement: 30KVA
Features

• 180 degree rotating pallet changer for high production requirements
• Ideal for heavy duty cutting of molds to the high-speed accuracy cutting for high precision parts
• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
• Rigid Meehanite cast iron construction with solid box ways
• Versatile 15HP AC, 15,000rpm direct drive, dual contact spindle
• Flexibility with the ability to add 4th/5th axis in the field
• 2,800 block/sec processing speeds for smoother and faster machining of complex work pieces

        Kitamura 2XD Sparkchanger

Kitamura 2XD Sparkchanger

Specifications
Table Size: 15.7” x 22.0” (400 x 560mm)
Travel (X, Y, Z): 23.6” x 20.1” x 20.1”
(600 x 510 x 510mm)
Spindle Taper: NST No. 40
Spindle Speed: 12,000rpm, NRG Belt Drive
Tool Storage Capacity: 40 Pcs.
Tool Change Time (T-T/C-C): 2.8 Sec. /5.2 Sec.
Rapid Feed (X, Y x Z): 1,889ipm (48m/min) X/Y x 1,654ipm (42m/min) Z
Power Requirement: 25KVA
Features

• Ideal for machining small to medium sized work pieces
• Standard 2-station, factory installed 180 degree rotating APC. Uniquely compact design
• Heavily ribbed stiff cast Meehanite C-Frame construction
• #40, 35HP, 12,000rpm NRG belt driven spindle offers power that exceeds industry standards
• Convenient and flexible standard scraper type chip conveyor
• Operator friendly Kitamura Arumatik-Jr. CNC Controller offers up to 16x faster processing speeds!

Ares Seiki – 30 or 40 Taper

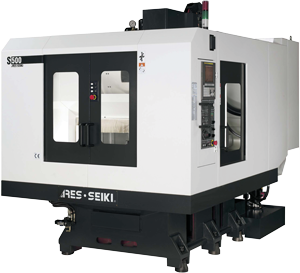

Ares Seiki S Series
